Flanged units

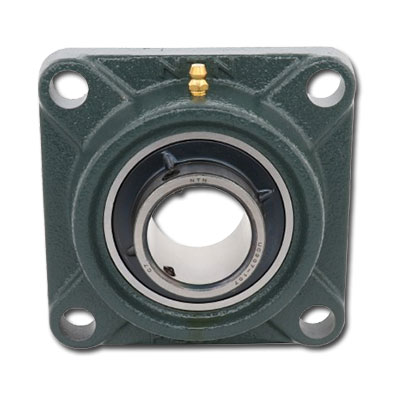

Flanged units Supplier
We are a trusted Flanged Units Supplier in Kolkata, offering premium-quality units that combine high-performance bearings with robust flanged housings. Designed for easy mounting and precise alignment, our flanged units are ideal for applications where the shaft passes through a surface at a right angle.
Our products are engineered to meet industry standards, ensuring durability, smooth operation, and minimal maintenance for industrial and commercial machinery.
What are Flanged Units?
A Flanged Unit consists of a bearing insert fitted into a flange-shaped housing, allowing for secure mounting in applications where a pillow block cannot be used. The flange helps position the bearing precisely, supporting radial and axial loads effectively. Flanged units are commonly available in 2-bolt, 3-bolt, and 4-bolt configurations and are designed for easy installation and alignment.Specifications of Flanged Units
| Parameter | Details |
| Housing Material | Cast Iron, Ductile Iron, Stainless Steel, Thermoplastic |
| Bearing Insert Material | Chrome Steel, Stainless Steel |
| Bolt Configurations | 2-Bolt, 3-Bolt, 4-Bolt |
| Bore Size Range | 12 mm to 100 mm (custom sizes available) |
| Sealing Options | Rubber Seals, Triple Lip Seals |
| Lubrication | Pre-lubricated with grease (re-lubrication options) |
| Operating Temp Range | -20°C to +120°C (special types for higher range) |
| Compliance | ISO / JIS Standards |
Features of Flanged Units
- Strong Housing Design – Rigid and durable construction for long service life
- Easy Installation – Bolt-on mounting simplifies assembly
- High Load Handling – Supports both radial and axial loads
- Sealed Bearing Insert – Maintenance-free and contamination-protected
- Versatile Mounting Options – Available in multiple flange configurations
- Corrosion Resistant Options – Stainless steel and coated variants for harsh environments
Applications of Flanged Units
Flanged units are used across a wide range of industries:- Agriculture – Harvesters, Conveyors, Ploughing Equipment
- Food & Beverage Industry – Processing & Packaging Equipment
- Textile Industry – Spinning & Weaving Machines
- Material Handling – Belt Conveyors, Elevators
- HVAC & Blowers – Fans, Ventilation Units
- Industrial Machinery – Pumps, Gearboxes, Mixers
Technical Chart of Flanged Units
| Model Type | Bolt Holes | Bore Size (mm) | Housing Material | Bearing Material | Application |
| UCFL Oval Flange Unit | 2-Bolt | 12–80 | Cast Iron | Chrome Steel | Motors, Gearboxes |
| UCFC Round Flange Unit | 4-Bolt | 20–100 | Cast Iron | Chrome Steel | Heavy Industrial Equipment |
| UCFT Square Flange Unit | 4-Bolt | 20–75 | Cast Iron / Steel | Chrome Steel | Conveyor & Material Handling |
| SS UCFL Flange Unit | 2-Bolt | 12–50 | Stainless Steel | Stainless Steel | Food Processing, Chemicals |
Why Choose Us as Your Flanged Units Manufacturer?
- Advanced manufacturing and precision machining facilities
- Capability to produce in bulk with consistent quality
- Custom sizes and materials available on request
- Delivery across Eastern and Central India
- Competitive pricing with strict quality assurance
