Rod End Bearings
Rod End Bearings Supplier
Rod End Bearings Supplier in Kolkata, Delhi, Assam, Odisha, and Across India – Fine Bearing
Fine Bearing is a leading Rod End Bearings Supplier in India, offering high-performance bearings that ensure smooth motion transfer, reduce friction, and enhance the operational efficiency of industrial equipment. We supply premium-quality Rod End Bearings across major industrial hubs such as Kolkata, Delhi, Delhi NCR, Assam, Chhattisgarh, Odisha, Bangalore, Mumbai, Hyderabad, Tamil Nadu, Madhya Pradesh, Indore, Uttarakhand, Jamshedpur, Ahmedabad, Gujarat, and Punjab.
What are Rod End Bearings?

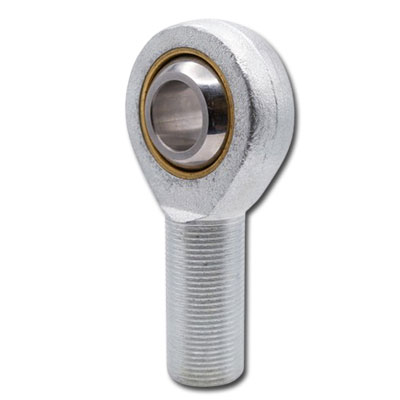

A Rod End Bearing (also known as a heim joint or rose joint) is a mechanical articulating joint consisting of a spherical plain bearing mounted in a housing with a threaded shaft. It allows oscillation, misalignment, and movement in various directions, making it suitable for applications requiring a flexible connection between components.
Rod end bearings are available in male and female threaded types, and in right-hand and left-hand thread configurations, to suit diverse installation requirements.
Where We Can Use Rod End Bearings?
Rod end bearings are widely used in:
- Automotive & Motorsports – Steering linkages, suspension systems
- Aerospace Applications – Control linkages, actuators
- Hydraulic & Pneumatic Cylinders – Motion control and articulation
- Robotics & Automation – Joint connections with angular movement
- Packaging & Conveyor Systems – Smooth load transfer and movement
- Agricultural Machinery – Linkages and mechanical connections
- Marine Equipment – Steering and control linkages
Features of Rod End Bearings
- High Misalignment Capability – Allows angular movement under load
- Durable Construction – Made from alloy steel, stainless steel, or bronze
- Corrosion Resistance – Available in plated or stainless steel options
- Easy Installation – Male and female threaded options for quick fitting
- High Load Capacity – Suitable for dynamic and static loads
- Maintenance Options – Available in maintenance-free (PTFE lined) or lubricated types
Specifications of Rod End Bearings
| Parameter | Details |
| Material | Alloy Steel, Stainless Steel, Carbon Steel, Bronze |
| Bearing Type | Plain Spherical Bearing Insert |
| Thread Type | Male / Female, Right-Hand / Left-Hand Thread |
| Thread Size Range | M4 to M30 (Custom sizes available) |
| Housing Finish | Zinc Plated, Nickel Plated, Stainless Steel Finish |
| Load Capacity | Varies by size and type (up to 200 kN+) |
| Lubrication | PTFE Lined (Maintenance-Free) or Grease-Fitted |
| Operating Temperature | -30°C to +120°C (special types for higher range) |
Technical Chart of Rod End Bearings
| Model | Thread Size | Bore (mm) | Static Load (kN) | Dynamic Load (kN) | Material |
| Male Right-Hand | M6–M30 | 6–30 | 6–150 | 4–120 | Carbon / Alloy Steel |
| Male Left-Hand | M6–M30 | 6–30 | 6–150 | 4–120 | Carbon / Alloy Steel |
| Female RH | M6–M24 | 6–24 | 5–120 | 4–100 | Alloy / SS |
| Female LH | M6–M24 | 6–24 | 5–120 | 4–100 | Alloy / SS |
| PTFE-Lined Type | M8–M20 | 8–20 | 8–100 | 6–80 | Stainless Steel |
Our Range of Rod End Bearings
Fine Bearing supplies a complete range of Rod End Bearings designed to meet the diverse needs of industries across India. Our range includes:
- Male Rod End Bearings
Designed for linkages that require internal threading, ideal for mechanical assemblies and control systems. - Female Rod End Bearings
Feature external threading for versatile mounting and flexibility in design. - Maintenance-Free Rod End Bearings
Self-lubricating and corrosion-resistant, suitable for high-load and high-speed operations. - PTFE Lined Rod End Bearings
Provide low-friction operation and long service life, ideal for precision and high-performance applications. - Stainless Steel Rod End Bearings
Offer excellent resistance to corrosion, moisture, and high-temperature environments.
Brands We Deal In
As a trusted Rod End Bearings supplier in India, Fine Bearing partners with some of the most reputed international and Indian bearing manufacturers to provide products that meet global quality standards.
We supply Rod End Bearings from top brands such as:
- SKF Rod End Bearings
- FAG Rod End Bearings
- NTN Rod End Bearings
- IKO Rod End Bearings
- RHP Rod End Bearings
- NSK Rod End Bearings
- NACHI Rod End Bearings
Each brand we supply is recognized for its precision engineering, durability, and performance consistency across demanding industrial applications.
Why Choose Fine Bearing for Rod End Bearings?
- Wide range of standard and customized rod end bearings
- Reliable supply across Kolkata, Delhi NCR, Bangalore, Mumbai, Hyderabad, Chennai, Ahmedabad, Punjab, and more
- Products from trusted brands meeting ISO / DIN standards
- Competitive pricing with assured quality
- Timely delivery for bulk and retail requirements
Serving Industrial Hubs Across India
Fine Bearing proudly serves industries in West Bengal, Delhi, Assam, Odisha, Chhattisgarh, Tamil Nadu, Madhya Pradesh, Gujarat, and Punjab, supplying Rod End Bearings that perform under pressure and deliver lasting reliability.
Our major service locations include:
Kolkata, Delhi, Delhi NCR, Assam, Chhattisgarh, Odisha, Bangalore, Mumbai, Hyderabad, Tamil Nadu, Madhya Pradesh (MP), Indore, Uttarakhand, Jamshedpur, Ahmedabad, Gujarat, and Punjab.
No matter your location, we ensure prompt delivery and consistent product availability across India.
Quality You Can Trust
Fine Bearing emphasizes stringent quality control and inspection at every stage of procurement and supply. All bearings undergo dimensional accuracy checks, surface finish inspection, and load testing to ensure flawless performance in real-world applications.
Whether you are sourcing Rod End Bearings for industrial automation, vehicle suspension systems, or heavy machinery, our products are built to last and deliver precision where it matters most.
Contact Fine Bearing – Leading Rod End Bearings Supplier in India
Looking for a reliable Rod End Bearings Supplier near you? Fine Bearing is your trusted partner for genuine, high-quality, and performance-tested bearings.
